URBAN SMH70 with turntable and folding belt conveyor 3,4 m

The engine

The SM70 is driven by a four stroke 10 hp Briggs & Straton VANGUARD engine, with pull cord or optional electric starter. The engine´s output is transferred via V-belts to the oil filled gearbox which drives the blade rotors. The fuel tank capacity is 4 litres. Upon request, a logger can be equipped by hour meter.

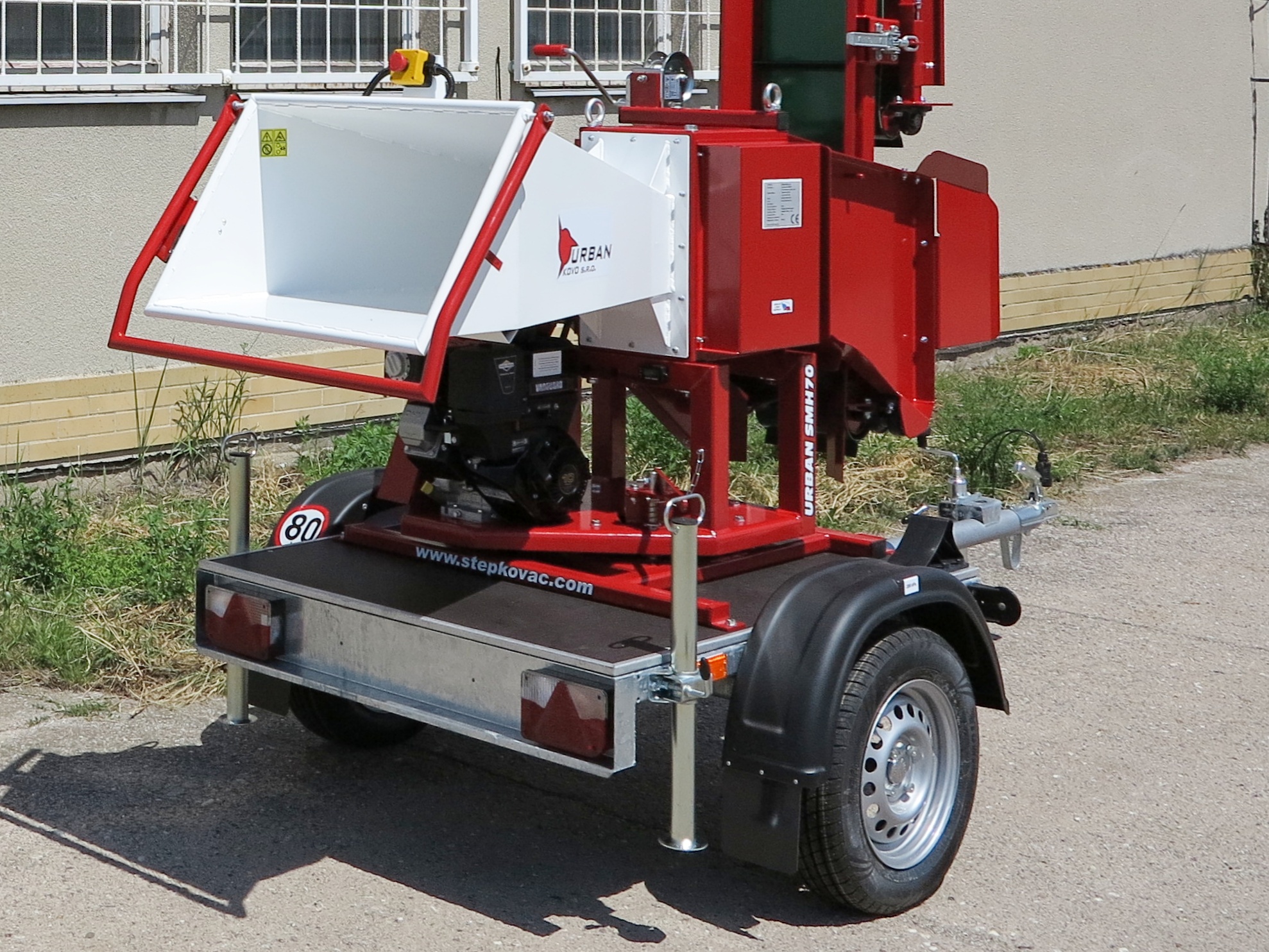

The road trailer

The logger has unbraked road trailer with number plate bracket. There is a one pull-out wheel in the front of trailer and two adjustable legs on the back side of trailer. The machine is connected to a vehicle with a 50 mm diameter tow ball. The total weight of the trailer with logger is 581 kg. The maximum written weight in the registration certificate is 600 kg. The centre of gravity of the machine is slightly before the axle.

The turntable

The branch logger is fixed to a 360° turntable to allow the branch logger to be rotated in eight lockable positions in 45° increments.

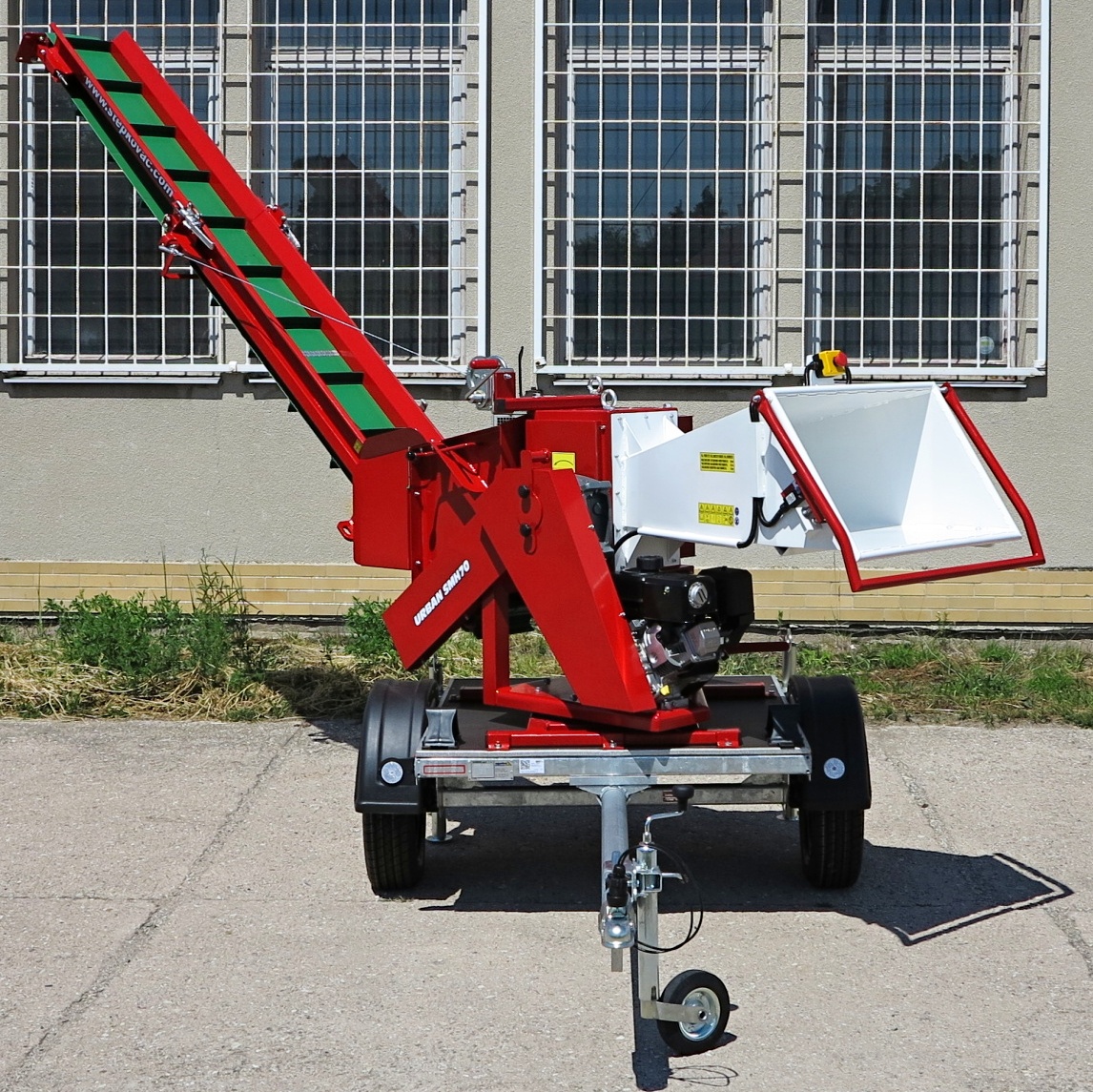

The belt conveyor

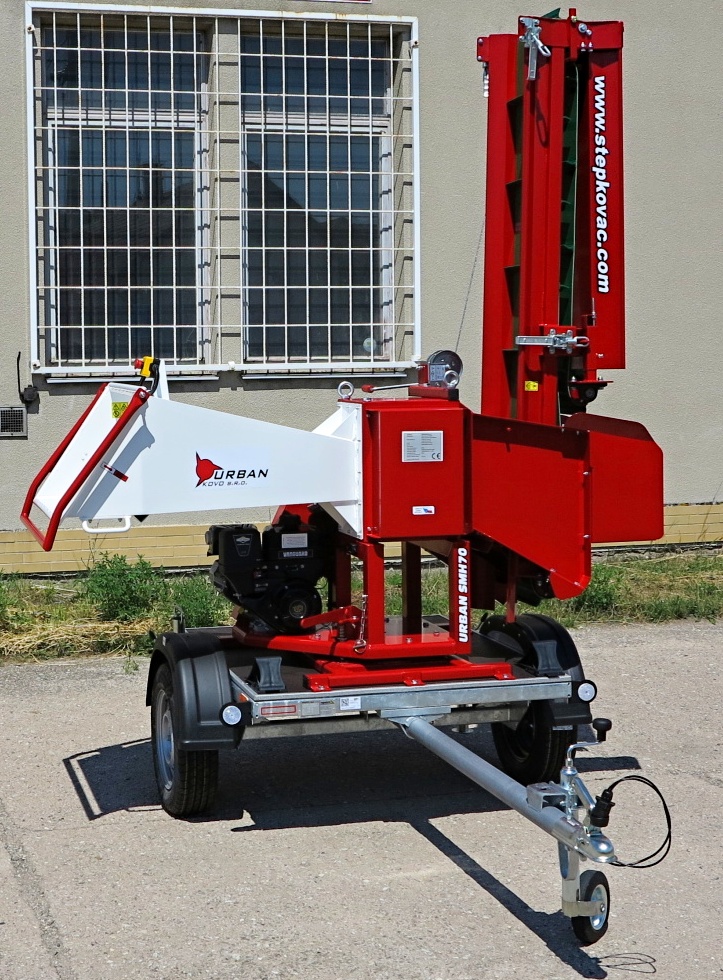

It is used a folding 3,4 m long belt conveyor driven by V-belt. The conveyor slope is adjustable by a winch. The conveyor is folded and lifted to the vertical position during transport. It is possible to install on the end of conveyor following accessories: the 0,8 m slide or a double bagging device with a support leg. The bagger is attached by four screws and assembly takes only a few minutes.

The inlet hopper

The hopper is long enough to provide safety and is equipped with a safety shut-off frame, which by pressing down stops the engine. The inlet hopper is oriented horizontally, which greatly facilitates insertion of long branches compared to the vertical or sloping hopper. Surface treatment of the whole machine is made with powder paint.

The Overload protection

If you put too large branch in the chipping-device, V-belts slip shortly and the engine stops. This is the way how to protect the branch logger against overload. When this situation happens, it´s usually impossible to take the branch outside of the chipping-device, because knives are jammed in the branch. In this situation, make sure the engine can not start itself, put away the small round cover of V-belts and turn over with the sheave clockwise until the branch is out of the chipping device. Then, please put the cover back on the place.

The chipping device

The working principle of branch loggers URBAN lies in two counter rotating shafts with knives. The rotating knives draw in the wood material into the feed hopper unassisted. The passage gap between the shafts is 70 mm. Each shaft has 3 fixed knives, made from high quality tool steel. It is possible to resharpen the knives repeatedly. After sharpening there is a pad to be put under the knives in order to keep the same gap between the knives (c. 0,1 mm). One single sharpening of knives is capable of producing from 100 to 500 solid meters of small logs, depending the level of contaminants (mud, nails, stones etc.). Each blade can be sharpened up about 4 mm, then it must be replaced with a new one.
