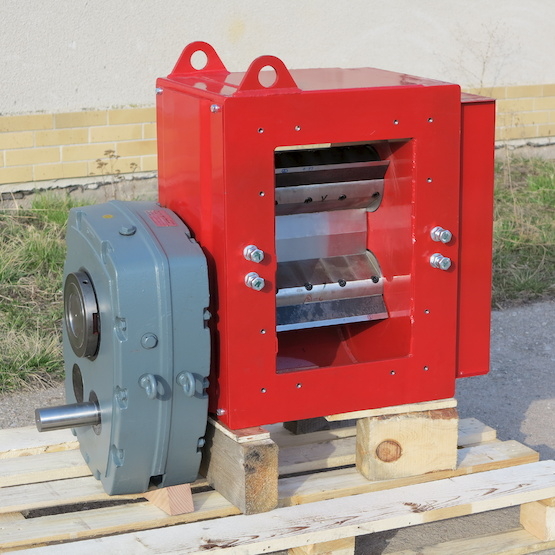

Complete chipping device with gearbox for TR110 / EM110
Complete chipping device with gearbox for TR110 / EM110
- Category: Complete chipping devices
- Model series:110
- Catalogues code:
- Offered from:10.03.2017
- Availability :within 2 weeks
Weight (kg): 433
Max. diameter of soft freshwood (pine): 120 mm
Max. diameter of fresh hardwood (oak, hornbeam): 100 mm
Max. diameter of dry hardwood (oak, hornbeam): 80 mm
Max. diamensions of block of wood (spruce): 100 x 100 mm
Max. diameter of wooden board (spruce): 280 x 40 mm
Log length (not adjustable): 7 - 22 cm
Number of logging blades: 6
The gap between the blade of the cutting blades: approx. 0,1 mm
Lifetime of blades per one grinding: 150 - 800 m3 of of small logs
Suitable for logger: EM110, TR110
- All fully assembled and adjusted.
- Input shaft of gearbox 48 mm with tongue groove.
- The M26 threads for attachment of the complete chipping device to the frame are on top and bottom sides
- The chipping device can be supplied with a pulley according previous agreement
