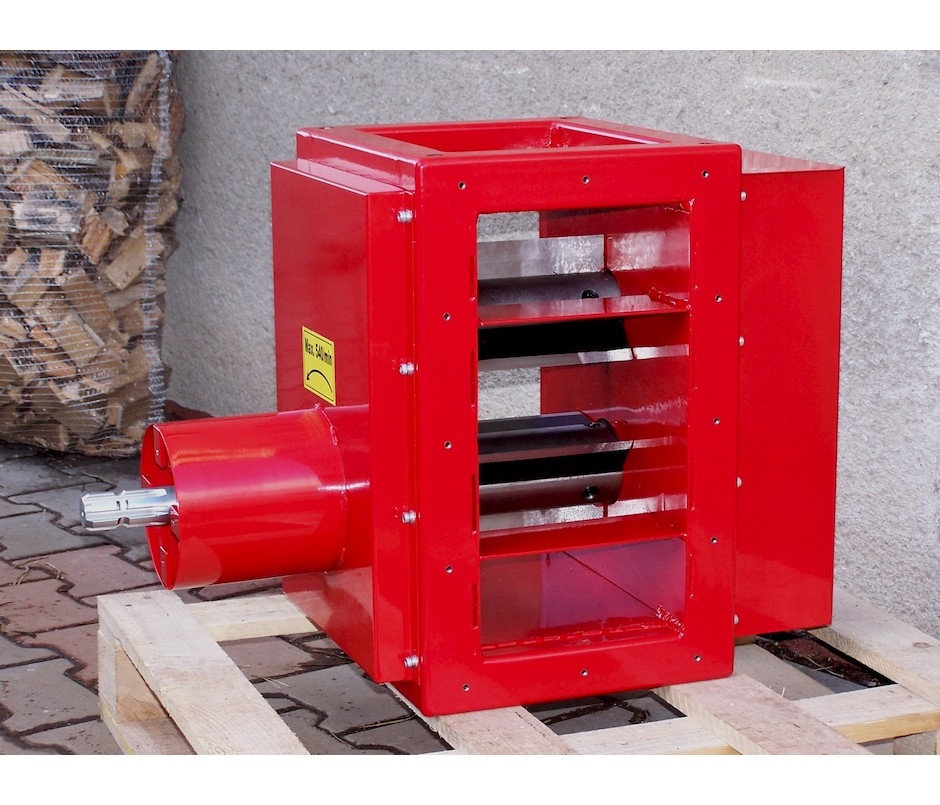

Complete chipping device for TR70
Complete chipping device for TR70
- Category: Complete chipping devices
- Model series:70
- Catalogues code:
- Offered from:07.03.2017
- Availability :within 2 weeks
Weight (kg): 110
Max. diameter of soft freshwood (pine): 80 mm
Max. diameter of fresh hardwood (oak, hornbeam): 65 mm
Max. diameter of dry hardwood (oak, hornbeam): 50 mm
Max. diamensions of block of wood (spruce): 60 x 60 mm
Max. diameter of wooden board (spruce): 190 x 20 mm
Log length (not adjustable): 6 - 13 cm
Number of logging blades: 6
The gap between the blade of the cutting blades: approx. 0,1 mm
Lifetime of blades per one grinding: 100 - 500 m3 of small logs
Suitable for logger: TR70
- All fully assembled and adjusted
- At the inlet there is a input shaft with 13/8 spline for cardan connection
- The M16 threads for attachment of the complete chipping device to the frame are on top and bottom sides
